Adorably anachronistic beeper/brick phone toy circuit bent with two contacts that serve as a pitch bend. Much more butch than the switchbox. The yellow zip ties at the melty top hold a salvaged switch to toggle between speaker and jack outputs, as a switched 1/4" jack was too big to implement. There's also supposed to be an LED to the lower right of the "D" in "WORLD" but I forgot to put it back in. Screw it (lost some of the screws incidentally). Makes some amusing record scratch-like noises if handled right.

FireAlarmPoet
Posts: 6679
Joined: Wed Oct 14, 2009 5:19 pm

Re: Show us yr DIY!

Post by FireAlarmPoet » Sat Jan 13, 2018 11:08 pm

What was once this...
...became this:
This is a little 8-bit-sounding keyboard toy modded with a 1/4" jack and a pitch knob. The bizarre wire coming out of it acts as a kind of stylus, used for playing the 'keys' on the exposed end of the PCB like a gakken synth or stylophone, hence the crude pun. It's surprisingly fun, wish I had saved the whole thing instead of just the PCB.

Looking at youtube videos of this thing, it's been bent before and better. Of course freeform delusion does basically everything better, so I guess I can't be irked too much. I have no idea how he implemented/found(?) the long sustain mod, though.

I repurposed a VHS-C case for the enclosure. Also repurposed a salvaged battery compartment from 318,549,623 years ago. Zip ties and brass clips hold down the pcb and were intended to provide support as well (they didn't).

Gut shot:

User avatar
fire
Posts: 2066
Joined: Tue Aug 17, 2010 2:15 pm
Location: noritual unformation

Re: Show us yr DIY!

Post by fire » Sun Jan 14, 2018 6:43 am

FireAlarmPoet wrote:
Sat Jan 13, 2018 10:40 pm
-do not for the love of christ get flux in the shafts of the footswitches
nice work man... try some mineral spirits on that flux
The sheep have their messiah, I am here for the wolves.

User avatar
crochambeau
Posts: 2675
Joined: Sat Nov 19, 2005 12:48 pm
Location: earth.
Contact:

Re: Show us yr DIY!

Post by crochambeau » Sun Jan 14, 2018 11:35 am

Yes! Keep it up. Power tools are excellent investments.

Here's a pass at some recent work of my own:

http://crochambeau.blogspot.com/

TL;DR version:



User avatar
Bipolar Fucking Joe
Posts: 5176
Joined: Wed Apr 01, 2009 11:55 am

Re: Show us yr DIY!

Post by Bipolar Fucking Joe » Sun Jan 14, 2018 12:29 pm

Your hack-fu has become impressive, FAP, I'm really interested in hearing the telephone.

User avatar
¼ dead
Posts: 977
Joined: Fri Mar 01, 2013 10:23 pm

Re: Show us yr DIY!

Post by ¼ dead » Mon Jan 15, 2018 5:14 am

I know you aren't supposed to compare yourself against other people, but Croch's solder wizardy and engineering prowess makes me feel worthless every time.

I have two of those Cool Keys things myself, FAP. I've decided that I want to rackmount them and supply them with MIDI input and pitch/voltage starves to create independently sequenceable/tuneable tones, with the stock membrane buttons accessible from the front (it's been a long time since I measured them, but I think they could fit in a 19" space with enough trimming). It's complete overkill, and I'm way too lazy and unequipped for such a project, but I still think it'd be really cool.

User avatar
crochambeau
Posts: 2675
Joined: Sat Nov 19, 2005 12:48 pm
Location: earth.
Contact:

Re: Show us yr DIY!

Post by crochambeau » Mon Jan 15, 2018 8:25 am

¼ dead wrote:
Mon Jan 15, 2018 5:14 am
I know you aren't supposed to compare yourself against other people, but Croch's solder wizardy and engineering prowess makes me feel worthless every time.
Please don't feel worthless!

(this forum needs the hug emoji)

I do apologize for that side effect (I am aware, and a similar social function is what pared way back my posting about my gear in general several years ago). This is what I do. Building stuff is where I placed my immersion of energy decades back, and the quality of work is a byproduct of my living/eating/shitting/thinking gear. It is also a far cry from that mythical level of perfection, or even optimum, but I am happy with it so I'll share.

I wouldn't wish the necessity of fixation for survival on anyone, but we're all sort of mis-wired around these parts. I broke that build down to illustrate some solutions to some issues that could hopefully assist anyone, and am guilty of glossing over a bunch of stupid pitfalls I tripped up on in that build.

Though I did mention the stupid reverse wiring of the gain pot.. :doh:

Keep on keeping on! hahahaha

User avatar
Bipolar Fucking Joe
Posts: 5176
Joined: Wed Apr 01, 2009 11:55 am

Re: Show us yr DIY!

Post by Bipolar Fucking Joe » Mon Jan 15, 2018 9:51 am

I can empathise a bit with Ray. Early on, trying to fix more complicated things, it would get fixed, but I'd break something else in the process, fall victim to the phantom extra-screws, etc. People like The Post-Apocalyptic Inventor on YouTube makes me envious of the amount of cheap old tools people can find in other countries. Cracking through the not-being-shit barrier is tough, it's like exercise. You see no benefit until pretty late in the game. I do like seeing something done well, though, and Curtis is the best on the board. I'd pick your brain more if I didn't think I'd be a pain in the arse.

User avatar
crochambeau
Posts: 2675
Joined: Sat Nov 19, 2005 12:48 pm
Location: earth.
Contact:

Re: Show us yr DIY!

Post by crochambeau » Mon Jan 15, 2018 10:02 am

Thanks for the kind words!
Bipolar Fucking Joe wrote:
Mon Jan 15, 2018 9:51 am
I'd pick your brain more if I didn't think I'd be a pain in the arse.

I love trying to help out, so don't hesitate to badger me on stuff. We're on the internet, so it's easy enough for me to reroute focus on something else if I need to (time delay in response, etc.).

I don't do chat well since it puts real time demands on the context of conversation, but my username at gmail is a pretty solid format if ever you, or anyone else here want to talk gear outside the spotlight. There are stupid questions, but it's important to be able to laugh at that. ;)

FireAlarmPoet
Posts: 6679
Joined: Wed Oct 14, 2009 5:19 pm

Re: Show us yr DIY!

Post by FireAlarmPoet » Wed Jan 17, 2018 8:14 am

Roughly a year ago I acquired one of these things:
It's basically a doorstop that makes a 'wew-wew-wew-wew' sound when the pedal is pressed down, and loops indefinitely until the door/foot/whatever is removed. I thought this would be great for a pedal of a different kind, but to make a long story short the original casing no longer became an option and I wanted to clean up my existing modifications anyways, so skip forward to a few days ago and it has a new home:
First off, this enclosure was a pain in the ass to work with: not recommended. It's one of those cheap holiday tins that's super malleable, so I had to place a block of wood behind every hole I was going to cut to prevent the drill bit ripping the whole box to shreds. Space is also an issue, as the 2xAA compartment inside has a tendency to weave itself in-between or under the in/out jacks making it difficult to remove without damaging the circuit (still need to find a better method for mounting tiny pcbs than simply letting them hang).

Next, onto the meat & potatoes: the 3pdt switch toggles between the aforementioned 'wew-wew-wew' noise straight to the output (or a speaker inside the tin if no jack is inserted in the output), to simply passing whatever's in the input through to the output. There's probably a way to blend the noise and input signals together but I couldn't be arse'd with it.

Volume pot really shines with line-out, not so much with the built-in speaker; should be self-explanatory. Speed of course controls the clock speed/pitch. It's the "DOOOOOOM" switch that needs some explaining: it toggles between the normal range of the speed pot, to adding an absurdly high resistance on top of that (500Mohm I think?). This turns the aforementioned 'wew-wew' into a slow, sputtering creep, hence the name of the project.

I even added a crappy logo:

MKULTRA
Posts: 2562
Joined: Sat Sep 13, 2008 6:04 am

Re: Show us yr DIY!

Post by MKULTRA » Wed Jan 17, 2018 12:47 pm

FAP, you are walking the rice paper. Well done.

User avatar
crochambeau
Posts: 2675
Joined: Sat Nov 19, 2005 12:48 pm
Location: earth.
Contact:

Re: Show us yr DIY!

Post by crochambeau » Thu Jan 18, 2018 6:53 am

Love it! Echoing the rice paper sentiment.
FireAlarmPoet wrote:
Wed Jan 17, 2018 8:14 am
(still need to find a better method for mounting tiny pcbs than simply letting them hang)

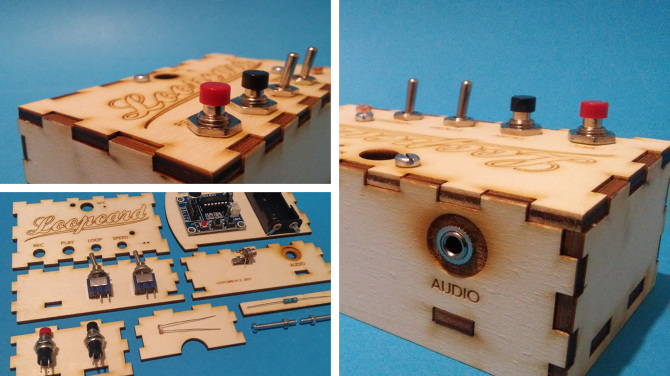

Do you have any mounting points to work with? I've seen this done:


Where that little bar slides into a slot cut in the wooden enclosure and is held in place when the case is buttoned up (there is of course another on the other side).

Another option is grabbing something like this, which gives you a zip tie point you can adhere to anywhere:

https://smile.amazon.com/Startech-HC102 ... =0&ie=UTF8

Post Reply
